Proton Labs
Ion Fountain PC-500/PC-200
Water Ionizer

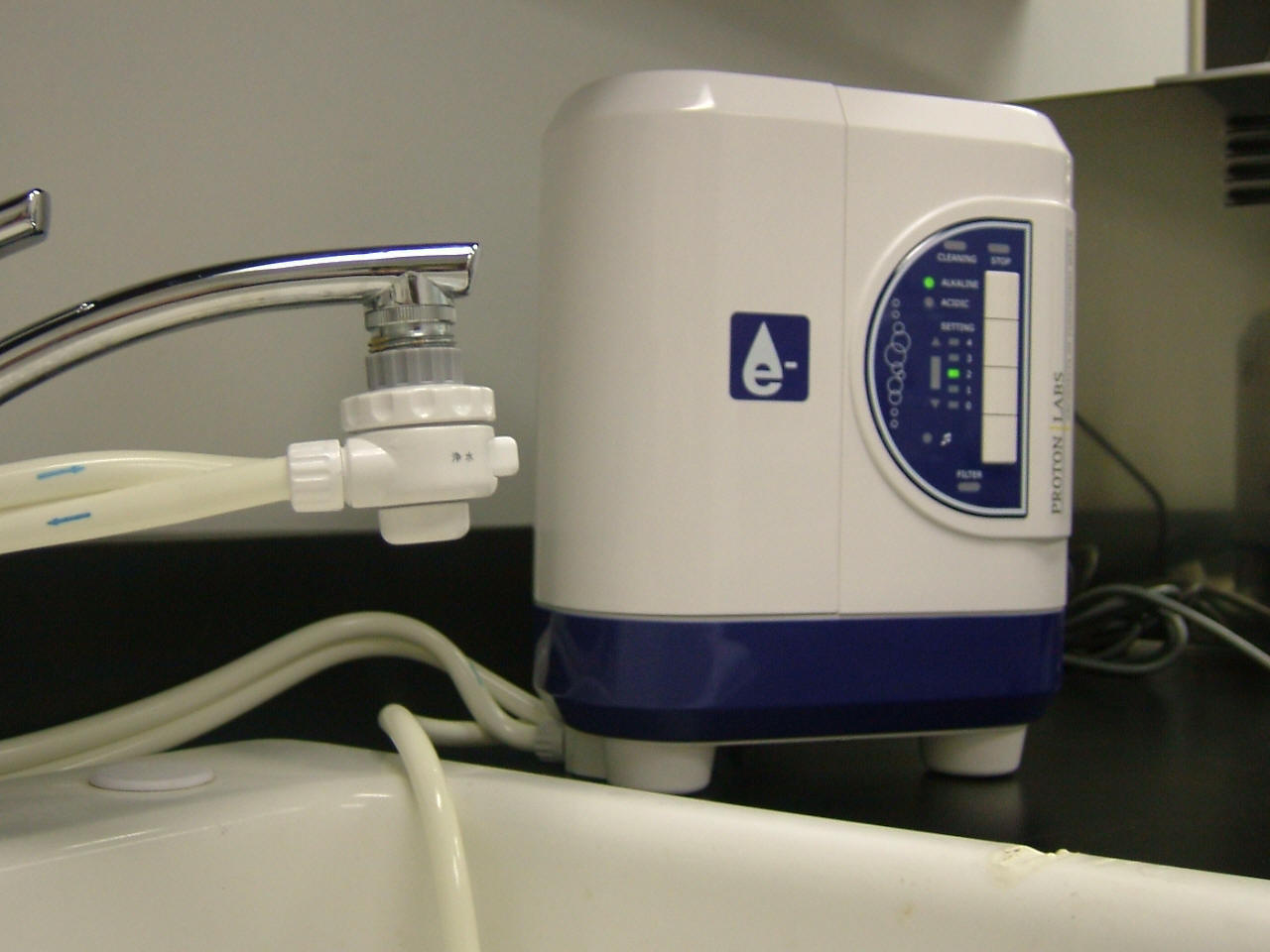

Isn't it beautiful! Although The Ion Fountain is our newest Japanese water ionizer, it comes from a long tradition of excellence. It replaces the Microwater ND 145/155 Series I and Series II water ionizers. Over the course of nine years 10,000 of the ND Microwater units were sold in the United States to satisfied customers. All the ND Microwater units are still working and they are still being supported for repairs when needed. Both the Microwater ND series and the Ion Fountain use the same replacement cartridge filter. The Ion Fountain is an improvement over the ND series Microwater unit, and promises to be even more dependable and long lasting than its predecessor. You simply cannot go wrong with this system. It sports huge electrodes which makes it easy to produce the highest pH and ORP effortlessly, producing excellent alkaline water with great negative ORP. This unit does not have a spout like the others. The alkaline water comes out of the faucet via the double hose configuration as seen in the picture above. Best of all, this unit is reasonably priced to fit your budget. It competed directly with the Alkalizer which is priced at over $1,100.00. If someone recommended the Alkalizer to you then you should definitely try the Ion Fountain.

• System Description: Electrolysis water system
• Water Source Connection: Connection to sink faucet end via faucet diverter Primary delivery via return flow to faucet diverter. Secondary via hose to sink
• Voltage: AC 120V 50/60 Hz (with ground)
• Power: Approx. 160 W during maximum use
• Dimensions:  240mm wide x 290mm x 1 15 mm 9.5ins wide x 1 1 .4ins high x 4.5ins deep
• Weight: Approx. 5 kg (1 libs) main unit dry - 7kg (151bs) shipped
• Water Supply: Municipally treated water within regulatory drinking water standards
• Operation method: Push-button switch (Range level and Alkaline/Acidic switches)
• Maximum water temperature: Approx. 86 degrees F (higher temperatures will damage filter)
• Operational water pressure: 9.9 ~ 85.2 psi (using diverter). Flow monitor indicates water flow through unit
• Electrolytic method: Continuous flow processing (with a built-in flow sensor)
• Electrolysis Processing capacity: Approx 1.2 gallons per minute alkaline water (4.5 - 5.0 liter/min.) Approx 0.75 gallons per minute acidic water (2.8 -3.0 liter/min)
• Electrolysis Levels: 5 Levels (Clean, 1, 2, 3, and 4)
• Electrolytic chamber: Platinum-plated titanium electrodes
• Electrode Cleaning: Microprocessor-controlled automatic self-cleaning after each use according to processing volume
• Water Filter Processing Capacity: Approx a year based on 10 gallons per day usage ( based on chlorine reduction capacity using 2 ppm to 4 ppm chlorinated water
• Water Filter Cartridge Life: Replacement predicted at 3000 gallons by flashing LED as a result of measurement by the flow meter. LED turns on at 2800 gallons
• Water Filter Material: Active carbon with silver (for removal of residual chlorine, chlorine odor, organic compounds and odor contents) and calcium sulfite
• Water Filter Replacement: Cartridge system. Audible chime alert during mount/dismount
• Power source protection: Glass tube 7 amp fuse.
• Conductivity overload: Automatic electrolysis level re-adjustment during power surges or high
• High Temperature overload: Automatic transthermal temperature sensor shutoff and reset protection
• Setting level memory: Memorizes the last setting when the power was turned off..
• 30 Day money back return policy



Order Your Ion Fountain Model PC-500
International Shipping Information
BLUE Replacement Cartridge Filter for The Ion Fountain	$104.00
WHITE Replacement Cartridge Filter for The Ion Fountain	$79.90
Electrolysis Plate Cleaning Cartridge
Ion Fountain Electrolysis Cleaning Cartridge - details	$45.00
Ion Fountain Metal Faucet Diverter	$45.00
Ion Fountain Double Input/Output Hose Pair	$20.00
Ion Fountain Single Acid run off hose	$10.00
Shipping is FREE for orders over $100.00 in the US
