SMART
Whole House Water Filter & Softener
14 stages of filtration
 Free Shipping in the 48 Lower States for orders over $100.00

starting at $1,493.75	starting at $1,868.75	starting at $2,330.85	starting at $3,314.85
Order Now	Order Now	Order Now	Order Now
Order Replacement Filters

See All Our Whole House Water Filters

See what contaminants were in tap water before filtration
See how much contaminants were removed after being filtered with Crystal Quest
These full size systems are far more powerful than the Multi-Stage filter used in the tests above

CRYSTAL QUEST® Eagle® Full-Size Whole House Water Filter provides you with pristine  great tasting water through every faucet in your home. They represents the most robust whole house water system we have ever seen. It removes hundreds of contaminants from  750,000 and 1000,000 gallons** of water. This is incredible. These systems are work horses. Great for home, apartment or office use.

Technologies Employed
CRYSTAL QUEST® Eagle® Full-Size Whole House Water Filte   incorporates a host of the most advanced filtration methods in one system. Technologies such as rovides you wit

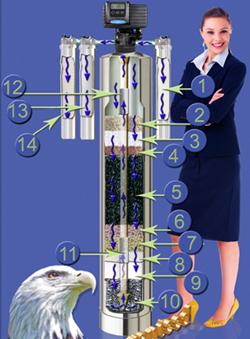

Stage 1: Sediment Filter: water flows through a 20" sediment filter cartridge that removes sediment, silt, sand and dirt. Also extends the life of the water filter and prevents damage.

Stages 2 and 4: Oxidation Reduction water flows through 2 beds of Redox (Oxidation/reduction process) media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc. Representing a new and unique way of water processing medium which by its natural process of electrochemical oxidation/reduction and adsorption action reduces and/or remove many unwanted contaminants from water. It is a major advancement in water treatment technology that works on electro-chemical and spontaneous-oxidation-reduction (Eagle Redox Alloy®) principles. Chlorine is instantaneously and almost inexhaustibly oxidized. Iron and hydrogen sulfide are oxidized into insoluble matter and attaches to the surface of the media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and other dissolved metals are also removed from the water by this natural process of electrochemical process. They are attracted to the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.

Stage 3: Harmful Heavy Metal Removal Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.

Stage 5: Granulated Activated Carbon water passes through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's, benzene), pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water, bad taste, and odors from your drinking water.

Stage 6 and 7: Infrared Mineral Balls Water travels through a special blend of natural Infra-Red and mineral balls. Infra-Red rays are the invisible portion of the sunlight spectrum that has been found to promote growth and health to living cells in plants, animals, and humans. By using a far infrared water filtration system, some have estimated an enrichment of treated water that somehow strengthens various organs within our bodies.

Stage 8 and 9: Alkaline Mineral: water travels through special blend of natural calcium carbonate medias which will alkalize/ionize and remineralizes water and raise the pH level of your water. It reduces acidity in the body and will produce natural calcium, magnesium, sodium and potassium ions that can be absorbed 100% in the human body. These Essential Minerals are vital to our organs. These are the symptoms when lacking essential minerals: Fatigue, Insomnia, Loss of Hair, Depression, Diabetes, High Blood Pressure, Asthma, Decayed Teeth, PMS. Migraines, Heart Disease.

BENEFITS

• Produces large quantities of hydrogen and oxygen

• Produces Alkali Calcium Ionized Water

• Provides more energy and increases the metabolic process.

• Prevents Reproduction of Germs and Virus

• Reverses aging, due to reduction of acid wastes

• Activates water molecules in our body

• Helps the body dissolve wastes and makes it easier to dispose them safely

Stage 10: Gravel Bed, water travels through bed of gravel. It provides backwashing support & polishes off the water.

Stage 11 and 12: Magnetize: water flows through two powerful magnet (greater than 12,000 gauss) creates magnetic field in filter for magnetic resonance activation of the water. This process lowers surface tension, increases solubility and increases absorptivity. This process also alter the physical characteristics of water-borne minerals so they don’t cling to pipes or equipment surfaces. It also controls lime/scale build-up plumbing corrosion protection.

Stage 13: Carbon Block Filter, water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's, insecticides, pesticides and industrial solvents).*

Stage 14: Ultrafiltration water passes through a 0.2 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron, and most other water contaminants known today.

Home Water Usage	1-3 Bathrooms	2-4 Bathrooms
Filter Media Volume	1.5 + cubic feet	2.0 + cubic feet
Capacity (gallons)	1,000,000	1,500,000
Service Flow (GPM)	9-11	10-13
Tank Dimensions	10" x 54"	12" x 52"
Material	Stainless Steel or Fiberglass	Stainless Steel or Fiberglass
Backwash	Automatic	Automatic
Brine Tank Dimensions*	18" x 33"	18" x 33"
Grain Capacity*	48,000	60,000

The system connects to the main line of your home

Easy to replace resin media approximately every 5 to 7 years for 750,000 gallons and 7 to 10 years for 1,000,000 gallons**
Click here for Guide to replacing media
Easy Filter Changes Requires only periodic backwash to keep unit in top condition
Available in 3/4" and 1" NPT input/output
fully shipped with filtration media already in the tank

Tank Type: There is no qualitative benefit to the filtered water whether you use a stainless steel tanks or fiber glass tanks.

** Varies with condition and amount of water consumption.
*** These rates and the drop in the flow will vary depending on the GPM and psi of the feed water.
**** Design/appearance on polyglass systems may change without notice. Depending on availability, various jackets may be shipped such as stainless steel, chrome wrap, or beige wrap.
^ Magnets found in the Eagle 1000 and 2000 will be included upon request and are not to be used in the presence of a pacemaker.

SMART Whole House Water Filter Standalone Fiberglass Unit
Model	Capacity	Resin/Cu. ft	Flow Rate	Tank Size	Price	Add to Cart
CQE-WH-01114	1,000,000 gallons	1.5	9 - 11 GPM ***	10" x 54"	$1,493.75
CQE-WH-01115	1,500,000 gallons	2.0	10 - 13 GPM***	12" x 52"	$1,757.70
12 GPM UV Water Sterilizer					$569.00
Leak Detector Smart Valve					$189.00
Free Shipping to the 48 lower States for orders over $100.00

[top of page]

SMART Whole House Water Filter Standalone Stainless Steel
Model	Capacity	Resin/Cu. ft	Flow Rate	Tank Size	Price	Add to Cart
CQE-WH-01120	1,000,000 gallons	1.5	9 - 11 GPM ***	10" x 54"	$1,868.75
CQE-WH-01121	1,500,000 gallons	2.0	10 - 13 GPM***	12" x 52"	$2,085.30
12 GPM UV Water Sterilizer					$569.00
Leak Detector Smart Valve					$189.00
Free Shipping to the 48 lower States for orders over $100.00

[top of page]

SMART Whole House Water Filter Softener Added Fiberglass
Model	Capacity	Resin/Cu. ft	Flow Rate	Tank Size	Price	Add to Cart
CQE-WH-01127	1,000,000 gallons	1.5	9 - 11 GPM ***	10" x 54"	$2,330.85
CQE-WH-01128	1,500,000 gallons	2.0	10 - 13 GPM***	12" x 52"	$2,868.75
12 GPM UV Water Sterilizer					$569.00
Leak Detector Smart Valve					$189.00
Free Shipping to the 48 lower States for orders over $100.00

[top of page]

SMART Whole House Water Filter Softener Added in Stanless Steel
Model	Capacity	Resin/Cu. ft	Flow Rate	Tank Size	Price	Add to Cart
CQE-WH-01129	1,000,000 gallons	1.5	9 - 11 GPM ***	10" x 54"	$3,314.85
CQE-WH-02110	1,500,000 gallons	2.0	10 - 13 GPM***	12" x 52"	$3,868.75
12 GPM UV Water Sterilizer					$569.00
Leak Detector Smart Valve					$189.00
Free Shipping to the 48 lower States for orders over $100.00

[top of page]

Replacement Pre & Post Filters For Eagle 2000

Carbon Block Filter	UF Membrane Cartridge Filter	Reusable Sediment Filter

Model/Capacity	Price	Add to Cart
5 Micron Carbon Block 2-7/8" x 20" Cartridge Filter	$31.50
Crystal Quest 2-7/8" x 20" UF Membrane Cartridge Filter	$119.00
5-Micron Sediment Reusable Pleated 2-7/8" x 20" Cartridge Filter	$31.50
Free Shipping to the 48 lower States for orders over $100.00

* If present in your water.
** Varies with condition and amount of water consumption.
*** These rates and the drop in the flow will vary depending on the GPM and psi of the feed water.

Guide for Replacing Media

• Turn off the water to the unit.

• Disconnect the unit from your plumbing.

• Carefully unscrew the valve off the top of the tank.

• Inside of your tank is plastic tubing known as the “riser tube”. The riser tube sucks up the water from the bottom of the tank during normal operation, and forces water to the bottom of the tank during the backwash operation. After removing the control valve from the tank, remove the riser tube from inside the mineral tank.

• Lay the tank on its side, or lay over trash can, to remove media.

• Rinse the inside of the tank clean with a garden hose.

• Discard old resin.

• Save old gravel.

• Make sure your media tank is standing straight up.

• Put a piece of tape over the top of the riser tube to prevent media from entering the tube while you are loading the media.

• Put the media funnel included with your system in the top of the media tank with the riser tube still inside and centered.

• The gravel goes into the tank first. When pouring in the gravel, make sure the riser tube is firmly on the bottom of the tank. Once you add your media, if the riser tube is pulled out of the gravel, it is impossible to put it back in without removing the other media from the tank.

• Pour the resin/media into the funnel, slowly letting it fall down inside the media tank around the riser tube. If you have a twin alternating system, divide the resin/media equally between the two tanks.

• When you have poured all of the resin/media into the media tank, it should be approximately 3/4 full.

• Remove the funnel and then the tape from the top of the riser tube.

• Brush any loose resin/media off the top opening of the tank. Clean the top edge with a cloth so the O-ring can seal securely to the valve base.

• Look at the bottom of your control valve and you will see an upper basket Inside of the basket, the valve has O-rings that will seal on the riser tube. Tilt the valve over on top of the media tank making sure the top of the riser tube inserts inside the opening of the upper basket. Guide the riser into the O-ring seal and tighten gently.

• Screw the valve back onto the top of the tank.

• Reconnect your plumbing to your unit. Turn the water to the unit on and check for leaks.

• Leave all faucets turned off inside the house, and open a single faucet (such as an outside faucet) letting the water run for 3-5 minutes. This rinses the new resin/media off inside the tank, and any particles or color will rinse out through the one open faucet, and not throughout your home plumbing system.
